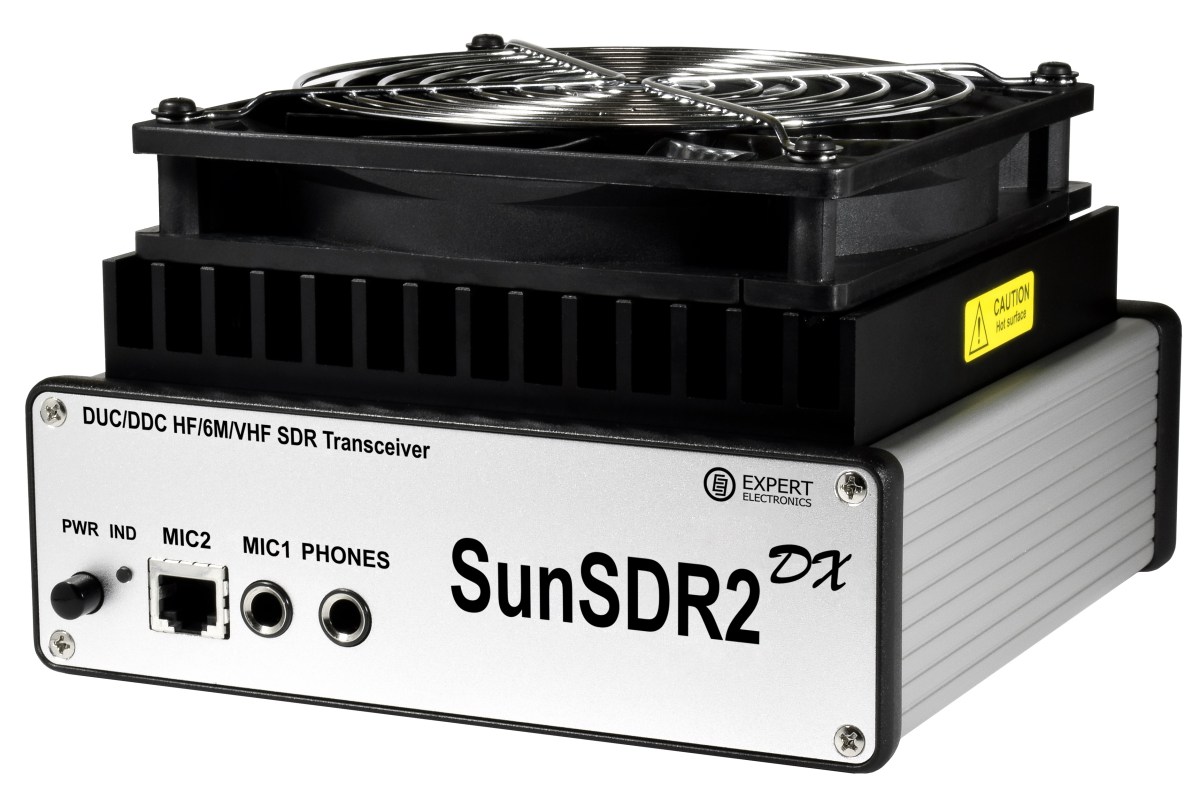

The SunSDR2 DX is a software‑defined radio (SDR) amateur‑radio transceiver made by Expert Electronics. It’s designed for ham radio operators, especially those interested in DXing (long‑distance contacts), contesting, and portable or remote stations.
It’s a compact, high‑power HF/VHF radio where most of the signal processing is done in software running on a computer, rather than in traditional analog circuitry. You control it using Expert Electronics’ ExpertSDR software over an Ethernet connection.
Key features
- Bands covered:
- HF (160 m through 6 m)
- VHF (2 m / 144 MHz)
- Output power:
- 100 W on HF
- 80 W on 6 m
- 8 W on 2 m
- Architecture:
- Direct‑sampling SDR using high‑resolution ADC/DAC
- Independent transmit and receive signal paths
- Receivers:
- Two main software receivers plus sub‑receivers
- Wideband spectrum display (bandscope) up to ~80 MHz
- Connectivity:
- Ethernet (LAN) control to a PC or network
- Supports remote operation over the internet via ExpertSDR software
- Form factor:
- Very compact, actively cooled
- Designed with DXpeditions and portable setups in mind
Expert Electronics LLC, (Эксперт Электроникс) is a Russian manufacturer of software‑defined radio (SDR) equipment for amateur (ham) radio and professional radio applications.
* Founded: 2009
* Business: Design and manufacture of SDR transceivers, receivers, and control systems
* Focus area: Software Defined Radio (SDR) hardware and software platforms
* Markets served: Amateur radio worldwide and selected professional/special‑purpose radio systems
Key Strengths
Receiver performance
- 16‑bit ADC at 160 MS/s
- Blocking dynamic range around 129–130 dB on HF
- Multiple front‑end filters (band‑pass + LPF/HPF) that significantly reduce out‑of‑band overload
- This results in excellent strong‑signal handling in contest and DX pileup environments.
Compact size, full power
- 100 W HF, 80 W on 6 m, ~8 W on 2 m
- Active cooling with improved thermal design (Gen5 hardware)
- Ideal for portable DXpeditions or small shacks where size and heat matter.
Ethernet‑based SDR & remote operation
- LAN control (no USB bottleneck)
- Native remote operation over the internet via ExpertSDR, without complex port forwarding
- TCI interface supported for external logging/contest software
- This makes it popular for remote, SO2V, and distributed station setups.
Cross‑platform software
- ExpertSDR runs natively on Windows, Linux, and macOS, which is a major differentiator compared to some SDR competitors. [kc7mm.com]
Common Criticisms
Software learning curve
- The radio is software‑centric
- Menu depth and signal‑chain control take time to learn
- Traditional “knob and dial” operators often find it less intuitive at first.
No front‑panel controls (without accessories)
- No physical knobs or display
- Optional E‑Coder hardware adds cost and complexity
- If you prefer an all‑in‑one physical console, this may be a downside.
Ecosystem is smaller
- Fewer third‑party accessories
- Smaller user community (though very technically competent)
Real‑world owner sentiment
On eHam, owners rate the SunSDR2 DX around 4.4/5, with long‑term users praising stability, receiver quality, and daily DX performance, especially on HF and 6 m. Several reviewers explicitly call it “plug‑and‑play” once initial network setup is completed.
Who it’s best for
- Contest operators
- Serious DXers
- Remote / distributed station builders
- Linux or macOS users who want native SDR software
Who should think twice
- Operators who want a traditional knob‑heavy radio
- Users uncomfortable with PC‑centric operation
Availability in US
The SUNSDR2 DX was available at US outlets such as DX Engineering, but since the War in Ukraine, tariffs and trade restrictions have limited availability outside of Russia. Expert Electronics has reportedly moved their manufacturing to China, which opens up some of the world. But, availability in the US is limited to the secondary or used market.
- Typical used prices: $1,700–$2,100 USD
- Used Gen5 units around $1,700
- New‑old‑stock or unopened units around $2,100
- eBay listings frequently appear in the $1,750–$1,900 USD range (often shipped from China)
Bottom line
The SunSDR2 DX is a high‑performance, compact, network‑centric SDR with excellent RF performance and remote capability. It rewards technically inclined operators and contest/DX users, but it’s not aimed at casual or appliance‑style radio operation.
